iOS实现水平方向瀑布流

效果
源码：https://github.com/YouXianMing/Animations
//// GridFlowLayoutViewController.m// Animations//// Created by YouXianMing on 16/5/5.// Copyright © 2016年 YouXianMing. All rights reserved.//#import "GridFlowLayoutViewController.h"#import "UIView+SetRect.h"#import "GridLayout.h"#import "FlowStyleCell.h"#import "FileManager.h"#import "NSString+MD5.h"#import "NSData+JSONData.h"#import "ResponseData.h"#import "Math.h"#import "GCD.h"static NSString *picturesSource = @"http://www.duitang.com/album/1733789/masn/p/0/50/";@interface GridFlowLayoutViewController （） <UICollectionViewDataSource, UICollectionViewDelegate, GridLayoutDelegate>@property （nonatomic, strong） UICollectionView *collectionView;@property （nonatomic） CGFloat rowHeight;@property （nonatomic, strong） NSMutableArray *datas;@property （nonatomic, strong） ResponseData*picturesData;@property （nonatomic, strong） NSMutableArray <WaterfallPictureModel *> *dataSource;@end@implementation GridFlowLayoutViewController- （void）setup {[super setup];_dataSource = [NSMutableArray new];// 初始化布局文件 CGFloat gap= 1; NSInteger rowCount= arc4random（） % 3 + 2; _rowHeight= （self.contentView.height - （rowCount + 1） * gap） / （CGFloat）rowCount; GridLayout *layout= [GridLayout new]; layout.manager.edgeInsets = UIEdgeInsetsMake（gap, gap, gap, gap）; layout.manager.gap= gap; layout.delegate = self;NSMutableArray *rowHeights = [NSMutableArray array]; for （int i = 0; i < rowCount; i++） {[rowHeights addObject:@（_rowHeight）]; } layout.manager.rowHeights = rowHeights;self.collectionView= [[UICollectionView alloc] initWithFrame:self.contentView.bounds collectionViewLayout:layout]; self.collectionView.delegate= self; self.collectionView.dataSource= self; self.collectionView.backgroundColor= [UIColor clearColor]; self.collectionView.showsHorizontalScrollIndicator = NO; self.collectionView.alpha = 0; [self.collectionView registerClass:[FlowStyleCell class] forCellWithReuseIdentifier:@"FlowStyleCell"]; [self.contentView addSubview:self.collectionView];// 获取数据 [GCDQueue executeInGlobalQueue:^{NSString *string= [picturesSource lowerMD532BitString];NSString *realFilePath = [FileManager theRealFilePath:[NSString stringWithFormat:@"~/Documents/%@", string]];NSData *data = nil;if （[FileManager fileExistWithRealFilePath:realFilePath] == NO） {data = [[NSData alloc] initWithContentsOfURL:[NSURL URLWithString:picturesSource]]; [data writeToFile:realFilePath atomically:YES]; } else {data = [NSData dataWithContentsOfFile:realFilePath];}NSDictionary *dataDic = [data toListProperty];[GCDQueue executeInMainQueue:^{self.picturesData = [[ResponseData alloc] initWithDictionary:dataDic]; if （self.picturesData.success.integerValue == 1） {for （int i = 0; i < self.picturesData.data.blogs.count; i++） {[_dataSource addObject:self.picturesData.data.blogs[i]];}[_collectionView reloadData];[UIView animateWithDuration:0.5f animations:^{_collectionView.alpha = 1.f;}]; }}]; }];}- （NSInteger）collectionView:（UICollectionView *）collectionView numberOfItemsInSection:（NSInteger）section {return self.dataSource.count;}- （UICollectionViewCell *）collectionView:（UICollectionView *）collectionView cellForItemAtIndexPath:（NSIndexPath *）indexPath {WaterfallPictureModel *pictureModel = _dataSource[indexPath.row];FlowStyleCell *cell = [collectionView dequeueReusableCellWithReuseIdentifier:@"FlowStyleCell" forIndexPath:indexPath]; cell.indexPath= indexPath; cell.data = pictureModel; cell.rowHeight= _rowHeight; [cell loadContent];return cell;}- （CGFloat）itemWidthWithIndexPath:（NSIndexPath *）indexPath {WaterfallPictureModel *pictureModel = _dataSource[indexPath.row];return [Math resetFromSize:CGSizeMake（pictureModel.iwd.floatValue, pictureModel.iht.floatValue）withFixedHeight:_rowHeight].width;}@end
细节

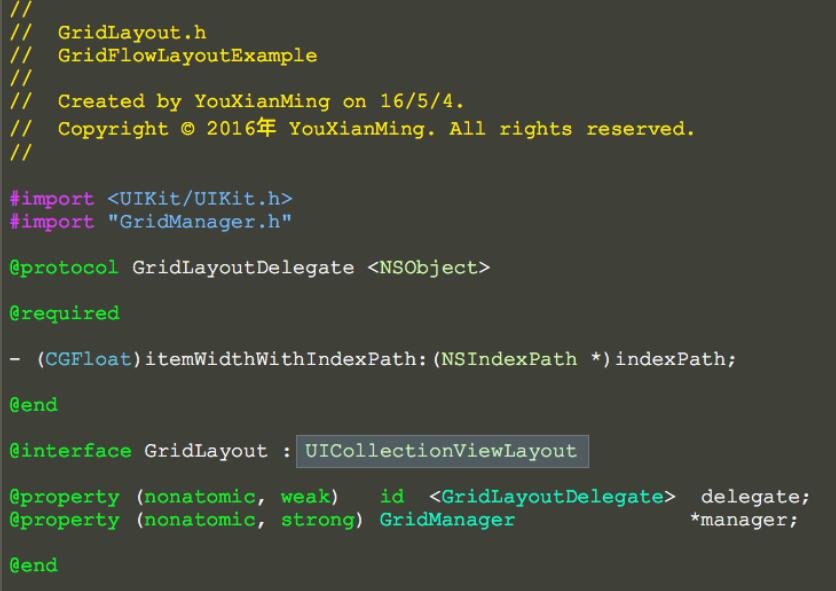

继承UICollectionViewLayout

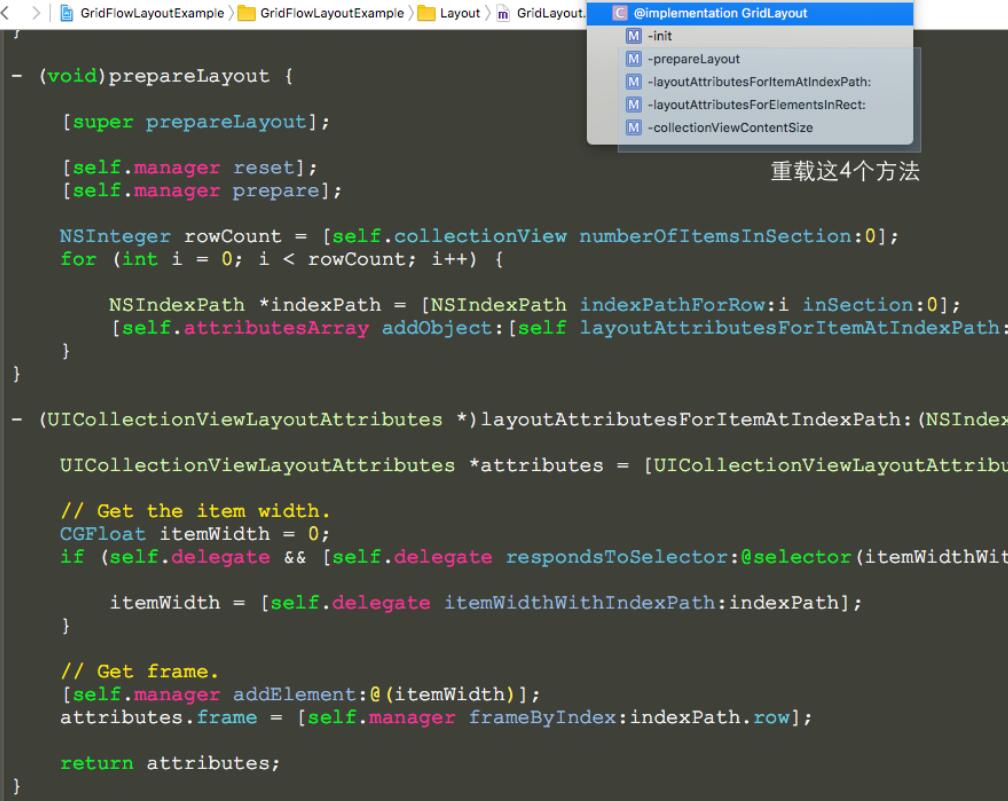

重载UICollectionViewLayout的四个方法

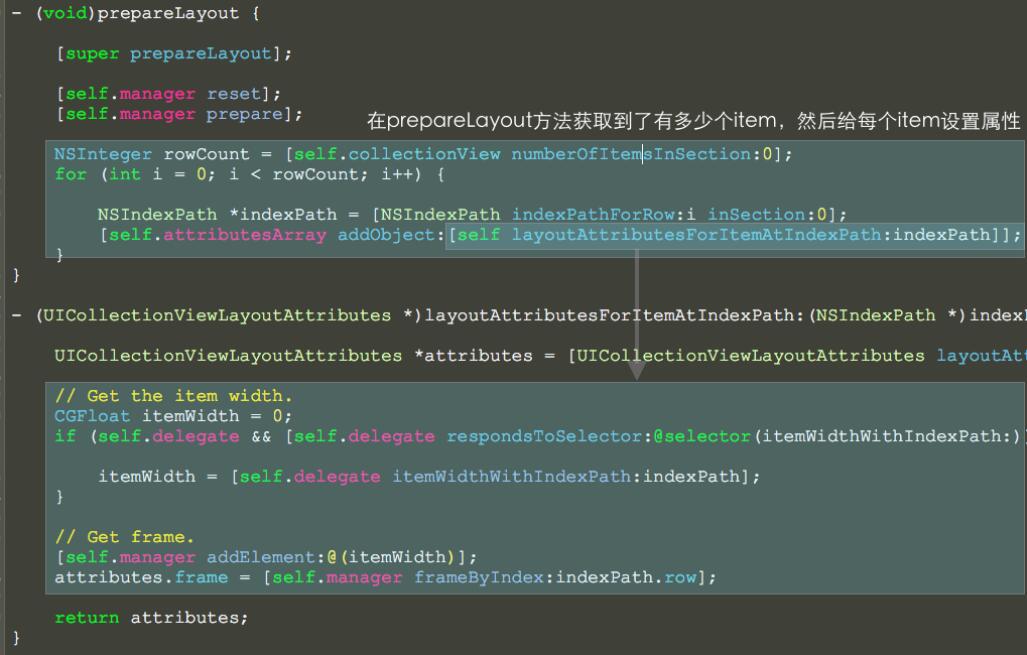

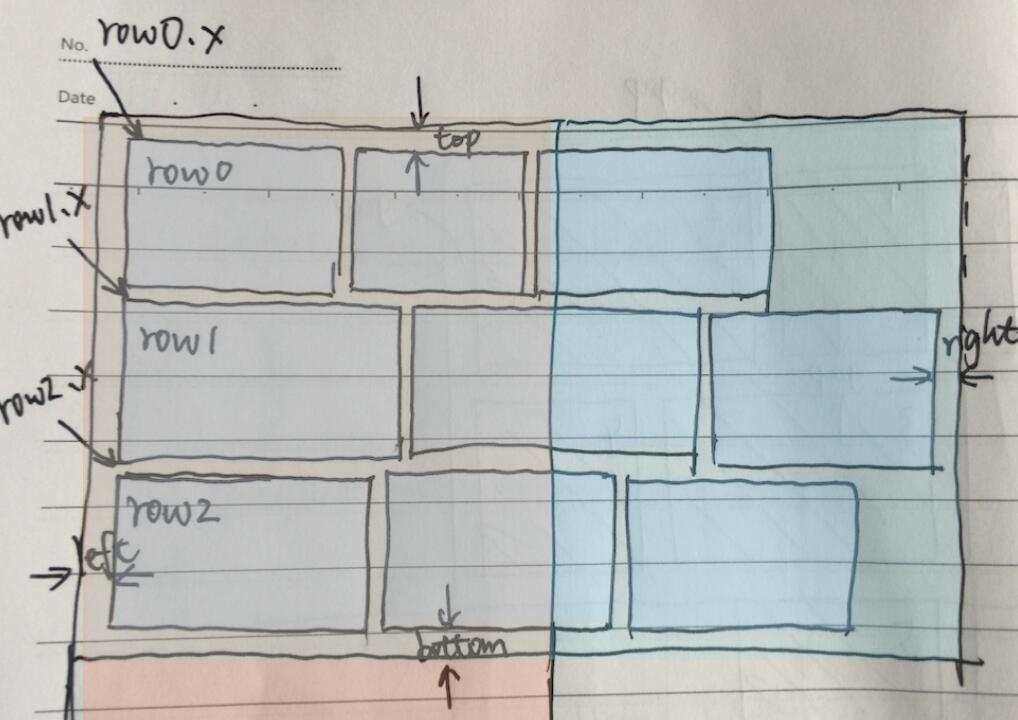

部分实现细节
