jsp页面验证码demo

在java后台中生成验证码的ImageIO传到前端页面显示，同时把验证码的value值传入session 中用于与用户输入的验证码进行匹配，在用户验证中使用ajax技术，在不刷新页面的同时进行验证码验证。

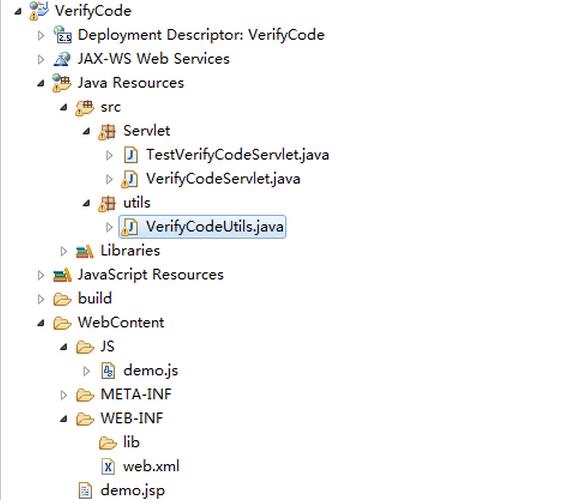

程序结构图：

VerifyCodeUtils程序主要内容为通过java生成验证码的图片，以及验证码的value值，程序如下：

package utils;import java.awt.Color;import java.awt.Font;import java.awt.Graphics2D;import java.awt.image.BufferedImage;import java.util.HashMap;import java.util.Map;import java.util.Random;public class VerifyCodeUtils {private static BufferedImage image = null;private static Random random = new Random（）;//在自己定义的一些数中，生成4位随机数public static String getVerifyCode（） {String str = "";char[] code = new char[]{"A","B","C","D","E","F","G","H","I","J","K","L","M","N","P","Q","R","S","T","U","V","W","X","Y","Z","a","b","c","d","e","f","g","h","i","j","k","m","n","p","q","r","s","t","u","v","w","x","y","z","2","3","4","5","6","7","8","9"};Random random = new Random（）;for（int i = 0; i < 4; i++） {str += String.valueOf（code[random.nextInt（code.length）]）;}return str;}//生成验证码图像public static Map getVerifyCode（int width, int heigth） {VerifyCodeUtils.image = new BufferedImage（width, heigth, BufferedImage.TYPE_INT_RGB）;Graphics2D g = （Graphics2D） VerifyCodeUtils.image.getGraphics（）;String verifyCode = getVerifyCode（）;Map map = new HashMap（）;map.put（"verifyCode", verifyCode）;//将图像填充为白色g.setColor（Color.WHITE）;g.fillRect（0, 0, width, heigth）;//设置字体g.setFont（new Font（"宋体", Font.BOLD + Font.ITALIC, heigth-10））;//画边框。 g.setColor（VerifyCodeUtils.getColor（））;g.drawRect（0, 0, width, heigth）; //随机产生干扰线，使图象中的认证码不易被其它程序探测到g.setColor（Color.BLACK）;for （int i = 0; i < 50; i++） {int x = VerifyCodeUtils.random.nextInt（width）;int y = VerifyCodeUtils.random.nextInt（heigth）;int xl = VerifyCodeUtils.random.nextInt（5）;int yl = VerifyCodeUtils.random.nextInt（5）; g.setColor（getColor（））;g.drawLine（x, y, x + xl, y + yl）;} char c;for（int i = 0; i < 4; i++） {c = verifyCode.charAt（i）;g.drawString（c+"", i*20+40, heigth-10）;}map.put（"image", VerifyCodeUtils.image）;return map;}//随机化颜色public static Color getColor（） {int red = 0, green = 0, blue = 0;// 产生随机的颜色分量来构造颜色值，这样输出的每位数字的颜色值都将不同。red = VerifyCodeUtils.random.nextInt（255）;green = VerifyCodeUtils.random.nextInt（255）;blue = VerifyCodeUtils.random.nextInt（255）; return new Color（red,green,blue）;}}

VerifyCodeServlet把VerifyCodeUtils生成的验证码图片通过io流传入前端显示，代码如下：

package Servlet;import java.awt.image.BufferedImage;import java.io.IOException;import java.util.Map;import javax.imageio.ImageIO;import javax.servlet.ServletException;import javax.servlet.annotation.WebServlet;import javax.servlet.http.HttpServlet;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import utils.VerifyCodeUtils;/** * Servlet implementation class VerifyCodeServlet */@WebServlet（"/"）public class VerifyCodeServlet extends HttpServlet {private static final long serialVersionUID = 1L;/** * @see HttpServlet#HttpServlet（） */public VerifyCodeServlet（） {super（）;// TODO Auto-generated constructor stub}/** * @see HttpServlet#doGet（HttpServletRequest request, HttpServletResponse response） */protected void doGet（HttpServletRequest request, HttpServletResponse response） throws ServletException, IOException {response.setHeader（"Expires", "-1"）;response.setHeader（"Cache-Control", "no-cache"）;response.setHeader（"Pragma", "no-cache"）;response.setHeader（"Content-type", "image/jpeg"）;Map map = VerifyCodeUtils.getVerifyCode（223, 50）;//把verifyCode的数值传入session中用于验证用户输入的验证码是否正确request.getSession（）.setAttribute（"verifyCode", map.get（"verifyCode"）.toString（）.toUpperCase（））;//通过IO流传入前端显示ImageIO.write（（BufferedImage） map.get（"image"）, "jpg", response.getOutputStream（））; }/** * @see HttpServlet#doPost（HttpServletRequest request, HttpServletResponse response） */protected void doPost（HttpServletRequest request, HttpServletResponse response） throws ServletException, IOException {// TODO Auto-generated method stubdoGet（request, response）;}}

页面jsp代码如下：

<%@ page language="java" contentType="text/html; charset=utf-8"pageEncoding="utf-8"%><！DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"><html><head><meta http-equiv="Content-Type" content="text/html; charset=utf-8"><base id="base" href="${pageContext.request.contextPath}"><title>验证码测试界面</title><style>div{float:left;}input{width:223px;height:31px;margin-right:20px;}img{width:223px;height:35px;}p{margin:10px;}</style></head> <body> <script src="${pageContext.request.contextPath}/JS/demo.js"></script> <div><input type="text" name="verifyCode" id="verifyCode" placeholder="验证码" onblur="check_verifyCode（）"></div><div><img src="${pageContext.request.contextPath}/servlet/VerifyCodeServlet" style="width: 100%" onclick="this.src=this.src + "?" + Math.random（）"/></div><div><p id = "tip"></p></div></body></html>

js 实现ajax代码如下：

/** **/function check_verifyCode（）{var XMLHttpReqVerifyCode = null;var url =document.getElementById（"base"）.href +"/servlet/TestVerifyCodeServlet";var verifyCode = document.getElementById（"verifyCode"）.value;var tip = document.getElementById（"tip"）;var errorTip = "输入的验证码不正确";var successTip = "输入的验证码正确";tip.innerHTML=errorTip;if（verifyCode==null || verifyCode==""）{tip.innerHTML=errorTip;tip.style.color = "red";}else{if（window.XMLHttpRequest） {//DOM2浏览器XMLHttpReqVerifyCode = new XMLHttpRequest（）;} else if（window.ActiveXObject） {//使用json语法创建数组var MSXML = ["MSXML2.XMLHTTP.5.0", "MSXML2.XMLHTTP.4.0", "MSXML2.XMLHTTP.3.0", "MSXML2.XMLHTTP", "Microsoft.XMLHTTP"];for（var i = 0; i < MSXML.length; i++） {try{XMLHttpReqVerifyCode = new ActiveXObject（MSXML[i]）;} catch（e） {}}}XMLHttpReqVerifyCode.open（"POST",url, true）;XMLHttpReqVerifyCode.setRequestHeader（"Content-Type", "application/x-www-form-urlencoded"）;XMLHttpReqVerifyCode.onreadystatechange = function testVerifyCodeServletResponse（）{if（XMLHttpReqVerifyCode.readyState == 4 && （XMLHttpReqVerifyCode.status == 200 || XMLHttpReqVerifyCode.status == 304）） {if（XMLHttpReqVerifyCode.responseText == 1）{tip.innerHTML = successTip;tip.style.color = "green";}else if（XMLHttpReqVerifyCode.responseText == 0）{tip.innerHTML = errorTip;tip.style.color = "red";}}}XMLHttpReqVerifyCode.send（"code="+verifyCode）;}//ajax前后台交互function createXMLHttpRequest（XMLHttpReq） {if（window.XMLHttpRequest） {//DOM2浏览器XMLHttpReq = new XMLHttpRequest（）;} else if（window.ActiveXObject） {//使用json语法创建数组var MSXML = ["MSXML2.XMLHTTP.5.0", "MSXML2.XMLHTTP.4.0", "MSXML2.XMLHTTP.3.0", "MSXML2.XMLHTTP", "Microsoft.XMLHTTP"];for（var i = 0; i < MSXML.length; i++） {try{XMLHttpReq = new ActiveXObject（MSXML[i]）;} catch（e） {}}return XMLHttpReq;}}}

TestVerifyCodeServlet与js交互代码为：

package Servlet;import java.io.IOException;import java.io.PrintWriter;import javax.servlet.ServletException;import javax.servlet.annotation.WebServlet;import javax.servlet.http.HttpServlet;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;/** * Servlet implementation class TestVerifyCodeServlet */@WebServlet（"/TestVerifyCodeServlet"）public class TestVerifyCodeServlet extends HttpServlet {private static final long serialVersionUID = 1L;/** * @see HttpServlet#HttpServlet（） */public TestVerifyCodeServlet（） {super（）;// TODO Auto-generated constructor stub}/** * @see HttpServlet#doGet（HttpServletRequest request, HttpServletResponse response） */protected void doGet（HttpServletRequest request, HttpServletResponse response） throws ServletException, IOException {// TODO Auto-generated method stubString codeTrue = （String） request.getSession（）.getAttribute（"verifyCode"）;String codeInput = request.getParameter（"code"）;System.out.println（codeInput）;response.setContentType（"text/html;charset=utf-8"）;PrintWriter out = response.getWriter（）;//打印流if（codeInput！=null）{if（codeInput.toUpperCase（）.equals（codeTrue））{out.println（"1"）;}else{out.println（"0"）;}}}/** * @see HttpServlet#doPost（HttpServletRequest request, HttpServletResponse response） */protected void doPost（HttpServletRequest request, HttpServletResponse response） throws ServletException, IOException {// TODO Auto-generated method stubdoGet（request, response）;}}

xml代码为

<?xml version="1.0" encoding="UTF-8"?><web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5"> <display-name></display-name> <welcome-file-list><welcome-file>demo.jsp</welcome-file> </welcome-file-list> <servlet><servlet-name>VerifyCodeServlet</servlet-name><servlet-class>Servlet.VerifyCodeServlet</servlet-class> </servlet> <servlet-mapping><servlet-name>VerifyCodeServlet</servlet-name><url-pattern>/servlet/VerifyCodeServlet</url-pattern> </servlet-mapping><servlet><servlet-name>TestVerifyCodeServlet</servlet-name><servlet-class>Servlet.TestVerifyCodeServlet</servlet-class> </servlet> <servlet-mapping><servlet-name>TestVerifyCodeServlet</servlet-name><url-pattern>/servlet/TestVerifyCodeServlet</url-pattern> </servlet-mapping></web-app>

结果显示：

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持脚本之家。
