详解在ASP.NET Core中使用Angular2以及与Angular2的Token base身份认证

Angular2是对Angular1的一次彻底的，破坏性的更新。
相对于Angular1.x，借用某果的广告语，唯一的不同，就是处处都不同。

•首先，推荐的语言已经不再是Javascript，取而代之的TypeScript，（TypeScript = ES6 + 类型系统 + 类型注解）, TypeScriipt的类型系统对于开发复杂的单页Web app大有帮助，同时编译成javascript后的执行效率也比大多数手写javascript要快。有兴趣的同学可以查阅官方文档：英文传送门 |中文传送门。

•得益于彻底重构，性能相对于Angular1.x有了大幅提升，也更适合再全平台部署。

•Angular2是基于Component的，Component可以理解为是1.x时代的Controller + $Scope + view

•View的很多语法也做了更新，比如<li ng-repeat="movie in vm.movies"></li> 变成了 <li *ngFor="let movie of movies"></li>

关于Angular2，强烈建议查阅官方文档：英文传送门| 中文传送门

注意：本文章属于Step by step + Code Sample教程，且篇幅较长，建议下载本Sample并跟着本文进度自己重做一遍本例，下载完整代码并分析代码结构才有意义，下载地址：How to authorization Angular 2 app with asp.net core web api
1.前期准备

•推荐使用VS2015 Update3或更新的版本完成本示例，下载地址：http://www.jb51.net/softjc/446184.html

•你需要安装.NET Core开发环境，这里提供VS版: http://www.jb51.net/softs/472362.html
•安装Node.js 版本5.0.0或以上，（在本例中，这个主要是编译TypeScript用的）下载地址：Node.js and NPM

•NPM 3.0.0或以上，默认NPM会随着Node.js一并安装完毕。（在本例中，这个主要是下载各种Angular的各个包用的，参考VS中的Nuget）
2.创建项目
在VS中新建项目，项目类型选择 ASP.NET Core Web Application（.Net Core），输入项目名称为：CSAuthorAngular2InASPNetCore，Template选择为Empty.
3.在项目中整合Angular2
3.1.配置Startup.cs

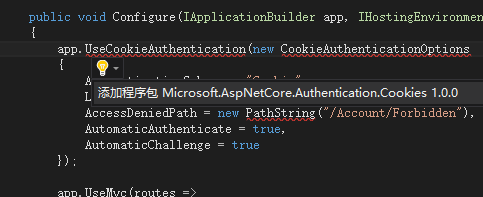

注：添加下面的代码时IDE会报代码错误，这是因为还没有引用对用的包，进入报错的这一行，点击灯泡，加载对应的包就可以了。

（图文无关）
在ConfigureServices中添加如下代码

services.AddMvc（）;

这里是添加MVC服务
在Configure中添加如下代码

app.UseStaticFiles（）;app.UseMvc（routes =>{routes.MapRoute（name: "default",template: "{controller=Home}/{action=Index}"）;}）;

第一句是启用静态文件，第二句是应用MVC模式并添加路由配置。
完整的代码应该是这个样子

public class Startup{// This method gets called by the runtime. Use this method to add services to the container.// For more information on how to configure your application, visit http://go.microsoft.com/fwlink/?LinkID=398940public void ConfigureServices（IServiceCollection services）{services.AddMvc（）;}// This method gets called by the runtime. Use this method to configure the HTTP request pipeline.public void Configure（IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory）{app.UseStaticFiles（）;app.UseMvc（routes =>{routes.MapRoute（name: "default",template: "{controller=Home}/{action=Index}"）;}）;}}

3.2.添加控制器以及视图
3.2.1.在项目根目录下添加Controllers目录，并在其中添加一个控制器HomeController.cs，默认代码即可。
3.2.2.在项目跟目录下创建Views目录，在Views目录中新建目录Home, 最后在Home目录中新建视图Index.cshtml，内容应该是这样：

<html><head><title>Angular QuickStart</title><base href="/"><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1"><！-- 1. Load libraries --><！-- Polyfill（s） for older browsers --><script src="node_modules/core-js/client/shim.min.js"></script><script src="node_modules/zone.js/dist/zone.js"></script><script src="node_modules/reflect-metadata/Reflect.js"></script><script src="node_modules/systemjs/dist/system.src.js"></script><！-- 2. Configure SystemJS --><script src="systemjs.config.js"></script><script> System.import（"app"）.catch（function（err）{ console.error（err）; }）;</script></head><！-- 3. Display the application --><body><my-app>Loading...</my-app></body></html>

现在运行项目的话你仅仅能看到一个Loading，再控制台中你还能看到错误，这是因为我们还没有配置Angular。让我们前往wwwroot目录。
3.3.在项目的wwwroot目录中添加如下结构:
3.3.1搭建Angular2基础环境
•package.json

{ "name": "angular-quickstart", "version": "1.0.0", "scripts": {"start": "tsc && concurrently "tsc -w" "lite-server" ","lite": "lite-server","postinstall": "typings install","tsc": "tsc","tsc:w": "tsc -w","typings": "typings" }, "licenses": [{ "type": "MIT", "url": "https://github.com/angular/angular.io/blob/master/LICENSE"} ], "dependencies": {"@angular/common": "2.0.2","@angular/compiler": "2.0.2","@angular/core": "2.0.2","@angular/forms": "2.0.2","@angular/http": "2.0.2","@angular/platform-browser": "2.0.2","@angular/platform-browser-dynamic": "2.0.2","@angular/router": "3.0.2","@angular/upgrade": "2.0.2","angular-in-memory-web-api": "0.1.5","bootstrap": "3.3.7","core-js": "2.4.1","reflect-metadata": "0.1.8","rxjs": "5.0.0-beta.12","systemjs": "0.19.39","zone.js": "0.6.25" }, "devDependencies": {"concurrently": "3.0.0","gulp": "^3.9.1","lite-server": "2.2.2","typescript": "2.0.3","typings": "1.4.0" }}

•systemjs.config.js

（function （global） {System.config（{paths: {// paths serve as alias"npm:": "node_modules/"},// map tells the System loader where to look for thingsmap: {// our app is within the app folderapp: "app",// angular bundles"@angular/core": "npm:@angular/core/bundles/core.umd.js","@angular/common": "npm:@angular/common/bundles/common.umd.js","@angular/compiler": "npm:@angular/compiler/bundles/compiler.umd.js","@angular/platform-browser": "npm:@angular/platform-browser/bundles/platform-browser.umd.js","@angular/platform-browser-dynamic": "npm:@angular/platform-browser-dynamic/bundles/platform-browser-dynamic.umd.js","@angular/http": "npm:@angular/http/bundles/http.umd.js","@angular/router": "npm:@angular/router/bundles/router.umd.js","@angular/forms": "npm:@angular/forms/bundles/forms.umd.js","@angular/upgrade": "npm:@angular/upgrade/bundles/upgrade.umd.js",// other libraries"rxjs": "npm:rxjs","angular-in-memory-web-api": "npm:angular-in-memory-web-api/bundles/in-memory-web-api.umd.js"},// packages tells the System loader how to load when no filename and/or no extensionpackages: {app: {main: "./main.js",defaultExtension: "js"},rxjs: {defaultExtension: "js"}}}）;}）（this）;

•tsconfig.js

{ "compileOnSave": true, "compilerOptions": {"target": "es5","module": "commonjs","moduleResolution": "node","sourceMap": true,"emitDecoratorMetadata": true,"experimentalDecorators": true,"removeComments": false,"noImplicitAny": false }, "exclude": ["node_modules" ]}

•typings.json（注，在最新文档中typings已被npm的@types替代，参见官方文档:文档变更日志）

{ "globalDependencies": {"core-js": "registry:dt/core-js#0.0.0+20160725163759","jasmine": "registry:dt/jasmine#2.2.0+20160621224255","node": "registry:dt/node#6.0.0+20160909174046" }}

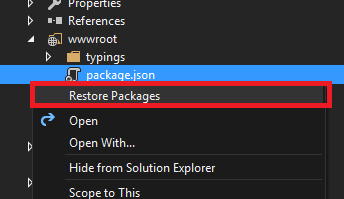

右击wwwroot中的Package.json,选择Restore Packages（或者在CMD下进入wwwroot目录，并执行命令 npm install）,npm会去下载需要的包,并存储于node_modules目录中。

3.3.2.配置启动文件以启用Angular2
在wwwroot下新建目录app,app拥有如下文件：
•app.component.ts

import { Component } from "@angular/core";@Component（{moduleId: module.id,selector: "my-app",template: "this is in angular2",}）export class AppComponent {}

可以发现被@Component装饰属性装饰了AppComponent，selector指代你Component的占位符，比如本例中你可以再Home/index.cshtml中发现一段这样的标记

<my-app>Loading...</my-app>

template既为该Component的View，不要忘记moduleId，不添加它会出现很多奇怪的问题。
•app.module.ts

import { NgModule } from "@angular/core";import { BrowserModule } from "@angular/platform-browser";import { AppComponent } from "./app.component";@NgModule（{bootstrap: [AppComponent],imports: [BrowserModule],declarations: [AppComponent]}）export class AppModule { }

•main.ts

import { platformBrowserDynamic } from "@angular/platform-browser-dynamic";import { AppModule } from "./app.module";const platform = platformBrowserDynamic（）;platform.bootstrapModule（AppModule）;

基础整合完毕。
按F5 Debug一下，现在你能再浏览器中看到一句话：this is in angular 2

4.实现身份认证
废了半天劲，看着很傻，没有任何成就感。怎么办，让我们再深入一点，接下来我们来为Angular2完成一个Token base的身份验证，我会把Angular2的routing,data bind,service,http,等等你工作中最常用到的挨个演示一遍。
4.1.Server端
4.1.1.创建一些辅助类
4.1.1.1.在项目根目录下创建一个文件夹Auth,并添加RSAKeyHelper.cs以及TokenAuthOption.cs两个文件
•在RSAKeyHelper.cs中

using System.Security.Cryptography;namespace CSTokenBaseAuth.Auth{public class RSAKeyHelper{public static RSAParameters GenerateKey（）{using （var key = new RSACryptoServiceProvider（2048））{return key.ExportParameters（true）;}}}}

•在TokenAuthOption.cs中

using System;using Microsoft.IdentityModel.Tokens;namespace CSTokenBaseAuth.Auth{public class TokenAuthOption{public static string Audience { get; } = "ExampleAudience";public static string Issuer { get; } = "ExampleIssuer";public static RsaSecurityKey Key { get; } = new RsaSecurityKey（RSAKeyHelper.GenerateKey（））;public static SigningCredentials SigningCredentials { get; } = new SigningCredentials（Key, SecurityAlgorithms.RsaSha256Signature）;public static TimeSpan ExpiresSpan { get; } = TimeSpan.FromMinutes（20）;}}

4.1.1.2.在项目根目录下创建目录Model,并在其中添加RequestResult.cs，代码应该是这样。

public class RequestResult{public RequestState State { get; set; }public string Msg { get; set; }public Object Data { get; set; }}public enum RequestState{Failed = -1,NotAuth = 0,Success = 1}

4.1.2更新Startup.cs
在ConfigureServices中添加如下代码：

services.AddAuthorization（auth =>{auth.AddPolicy（"Bearer", new AuthorizationPolicyBuilder（）.AddAuthenticationSchemes（JwtBearerDefaults.AuthenticationScheme‌）.RequireAuthenticatedUser（）.Build（））;}）;

这里是添加身份认证服务
在Configure方法中添加如下代码：

app.UseExceptionHandler（appBuilder =>{appBuilder.Use（async （context, next） =>{var error = context.Features[typeof（IExceptionHandlerFeature）] as IExceptionHandlerFeature;//when authorization has failed, should retrun a json message to clientif （error ！= null && error.Error is SecurityTokenExpiredException）{context.Response.StatusCode = 401;context.Response.ContentType = "application/json";await context.Response.WriteAsync（JsonConvert.SerializeObject（new RequestResult{State = RequestState.NotAuth,Msg = "token expired"}））;}//when orther error, retrun a error message json to clientelse if （error ！= null && error.Error ！= null）{context.Response.StatusCode = 500;context.Response.ContentType = "application/json";await context.Response.WriteAsync（JsonConvert.SerializeObject（new RequestResult{State = RequestState.Failed,Msg = error.Error.Message}））;}//when no error, do next.else await next（）;}）;}）;

本段是Handle当身份认证失败时抛出的异常，并返回合适的json
在相同的方法中添加另外一段代码：

app.UseJwtBearerAuthentication（new JwtBearerOptions（）{TokenValidationParameters = new TokenValidationParameters（）{IssuerSigningKey = TokenAuthOption.Key,ValidAudience = TokenAuthOption.Audience,ValidIssuer = TokenAuthOption.Issuer,// When receiving a token, check that we"ve signed it.ValidateIssuerSigningKey = true,// When receiving a token, check that it is still valid.ValidateLifetime = true,// This defines the maximum allowable clock skew - i.e. provides a tolerance on the token expiry time // when validating the lifetime. As we"re creating the tokens locally and validating them on the same// machines which should have synchronised time, this can be set to zero. Where external tokens are// used, some leeway here could be useful.ClockSkew = TimeSpan.FromMinutes（0）}}）;

本段代码是应用JWTBearerAuthentication身份认证。
4.1.3.TokenAuthController.cs
在Controllers中新建一个Web API Controller Class，命名为TokenAuthController.cs。我们将在这里完成登录授权，
在同文件下添加两个类，分别用来模拟用户模型，以及用户存储，代码应该是这样:

public class User{public Guid ID { get; set; }public string Username { get; set; }public string Password { get; set; }}public static class UserStorage{public static List<User> Users { get; set; } = new List<User> {new User {ID=Guid.NewGuid（）,Username="user1",Password = "user1psd" },new User {ID=Guid.NewGuid（）,Username="user2",Password = "user2psd" },new User {ID=Guid.NewGuid（）,Username="user3",Password = "user3psd" }};}

接下来在TokenAuthController.cs中添加如下方法

private string GenerateToken（User user, DateTime expires）{var handler = new JwtSecurityTokenHandler（）;ClaimsIdentity identity = new ClaimsIdentity（new GenericIdentity（user.Username, "TokenAuth"）,new[] {new Claim（"ID", user.ID.ToString（））}）;var securityToken = handler.CreateToken（new SecurityTokenDescriptor{Issuer = TokenAuthOption.Issuer,Audience = TokenAuthOption.Audience,SigningCredentials = TokenAuthOption.SigningCredentials,Subject = identity,Expires = expires}）;return handler.WriteToken（securityToken）;}

该方法仅仅只是生成一个Auth Token,接下来我们来添加另外一个方法来调用它
在相同文件中添加如下代码

[HttpPost]public string GetAuthToken（User user）{var existUser = UserStorage.Users.FirstOrDefault（u => u.Username == user.Username && u.Password == user.Password）;if （existUser ！= null）{var requestAt = DateTime.Now;var expiresIn = requestAt + TokenAuthOption.ExpiresSpan;var token = GenerateToken（existUser, expiresIn）;return JsonConvert.SerializeObject（new {stateCode = 1,requertAt = requestAt,expiresIn = TokenAuthOption.ExpiresSpan.TotalSeconds,accessToken = token}）;}else{return JsonConvert.SerializeObject（new { stateCode = -1, errors = "Username or password is invalid" }）;}}

接下来我们来完成授权部分，在相同的文件中添加如下代码：

public string GetUserInfo（）{var claimsIdentity = User.Identity as ClaimsIdentity;return JsonConvert.SerializeObject（new RequestResult{State = RequestState.Success,Data = new{UserName = claimsIdentity.Name}}）;}

为方法添加装饰属性
[HttpGet]

[Authorize（"Bearer"）]
第二行代码说明这个action需要身份验证。
该文件完整的代码应该是这个样子：

using System;using System.Collections.Generic;using System.Linq;using Microsoft.AspNetCore.Mvc;using CSAuthorAngular2InASPNetCore.Auth;using System.IdentityModel.Tokens.Jwt;using Newtonsoft.Json;using System.Security.Claims;using System.Security.Principal;using Microsoft.IdentityModel.Tokens;using CSAuthorAngular2InASPNetCore.Model;using Microsoft.AspNetCore.Authorization;namespace CSAuthorAngular2InASPNetCore.Controllers{[Route（"api/[controller]"）]public class TokenAuthController : Controller{[HttpPost]public string GetAuthToken（[FromBody]User user）{var existUser = UserStorage.Users.FirstOrDefault（u => u.Username == user.Username && u.Password == user.Password）;if （existUser ！= null）{var requestAt = DateTime.Now;var expiresIn = requestAt + TokenAuthOption.ExpiresSpan;var token = GenerateToken（existUser, expiresIn）;return JsonConvert.SerializeObject（new RequestResult{State = RequestState.Success,Data = new{requertAt = requestAt,expiresIn = TokenAuthOption.ExpiresSpan.TotalSeconds,tokeyType = TokenAuthOption.TokenType,accessToken = token}}）;}else{return JsonConvert.SerializeObject（new RequestResult{State = RequestState.Failed,Msg = "Username or password is invalid"}）;}}private string GenerateToken（User user, DateTime expires）{var handler = new JwtSecurityTokenHandler（）;ClaimsIdentity identity = new ClaimsIdentity（new GenericIdentity（user.Username, "TokenAuth"）,new[] {new Claim（"ID", user.ID.ToString（））}）;var securityToken = handler.CreateToken（new SecurityTokenDescriptor{Issuer = TokenAuthOption.Issuer,Audience = TokenAuthOption.Audience,SigningCredentials = TokenAuthOption.SigningCredentials,Subject = identity,Expires = expires}）;return handler.WriteToken（securityToken）;}[HttpGet][Authorize（"Bearer"）]public string GetUserInfo（）{var claimsIdentity = User.Identity as ClaimsIdentity;return JsonConvert.SerializeObject（new RequestResult{State = RequestState.Success,Data = new{UserName = claimsIdentity.Name}}）;}}public class User{public Guid ID { get; set; }public string Username { get; set; }public string Password { get; set; }}public static class UserStorage{public static List<User> Users { get; set; } = new List<User> {new User {ID=Guid.NewGuid（）,Username="user1",Password = "user1psd" },new User {ID=Guid.NewGuid（）,Username="user2",Password = "user2psd" },new User {ID=Guid.NewGuid（）,Username="user3",Password = "user3psd" }};}}

4.2Angular2端
4.2.1创建View Model
在wwwroot/app下创建一个目录：_model，并添加一个Typescript文件RequestResult.ts，内容应该是这样。

export class RequestResult {State: number;Msg: string;Data: Object;}

4.2.2创建Service
在wwwroot/app下创建一个目录：_services，并添加一个Typescript文件auth.service.ts，内容应该是这样。

import { Injectable } from "@angular/core";import { Headers, Http } from "@angular/http";import "rxjs/add/operator/toPromise";import { RequestResult } from "../_model/RequestResult";@Injectable（）export class AuthService {private tokeyKey = "token";private token: string;constructor（private http: Http） { }login（userName: string, password: string）: Promise<RequestResult> {return this.http.post（"/api/TokenAuth", { Username: userName, Password: password }）.toPromise（）.then（response => {let result = response.json（） as RequestResult;if （result.State == 1） {let json = result.Data as any;sessionStorage.setItem（"token", json.accessToken）;}return result;}）.catch（this.handleError）;}checkLogin（）: boolean {var token = sessionStorage.getItem（this.tokeyKey）;return token ！= null;}getUserInfo（）: Promise<RequestResult> {return this.authGet（"/api/TokenAuth"）;}authPost（url: string, body: any）: Promise<RequestResult> {let headers = this.initAuthHeaders（）;return this.http.post（url, body, { headers: headers }）.toPromise（）.then（response => response.json（） as RequestResult）.catch（this.handleError）;}authGet（url）: Promise<RequestResult> {let headers = this.initAuthHeaders（）;return this.http.get（url, { headers: headers }）.toPromise（）.then（response => response.json（） as RequestResult）.catch（this.handleError）;}private getLocalToken（）: string {if （！this.token） {this.token = sessionStorage.getItem（this.tokeyKey）;}return this.token;}private initAuthHeaders（）: Headers {let token = this.getLocalToken（）;if （token == null） throw "No token";var headers = new Headers（）;headers.append（"Authorization", "Bearer " + token）;return headers;}private handleError（error: any）: Promise<any> {console.error（"An error occurred", error）;return Promise.reject（error.message || error）;}}

本文件主要用来完成登录以及登录验证工作，之后该service将可以被注入到Component中以便被Component调用。
注：主要的逻辑都应该写到service中
4.2.3.创建Component
4.2.3.1.在wwwroot/app下创建一个目录home,该目录用来存放HomeComponent,home应拥有如下文件：
•home.component.ts

import { Component, OnInit } from "@angular/core";import { AuthService } from "../_services/auth.service";@Component（{moduleId: module.id,selector: "my-home",templateUrl: "view.html",styleUrls: ["style.css"]}）export class HomeComponent implements OnInit {isLogin = false;userName: string;constructor（private authService: AuthService） { }ngOnInit（）: void {this.isLogin = this.authService.checkLogin（）;if （this.isLogin） {this.authService.getUserInfo（）.then（res => {this.userName = （res.Data as any）.UserName;}）;}}}

查阅代码，在@Component中指定了View以及style。
AuthService被在构造方法中被注入了本Component，ngOnInit是接口OnInit的一个方法，他在Component初始化时会被调用。
•style.css

/*styles of this view*/

本例中没有添加任何样式，如有需要可以写在这里。
•view.html

<div *ngIf="isLogin"><h1>Hi <span>{{userName}}</span></h1></div><div *ngIf="！isLogin"><h1>please login</h1><a routerLink="/login">Login</a></div>

*ngIf=""是Angular2 的其中一种标记语法，作用是当返回真时渲染该节点，完整教程请参阅官方文档。
4.2.3.2.在wwwroot/app下创建目录Login,该目录用来存放LoginComponent,文件结构类似于上一节。
•login.component.ts

import { Component } from "@angular/core";import { Router } from "@angular/router";import { AuthService } from "../_services/auth.service";@Component（{moduleId: module.id,selector: "my-login",templateUrl: "view.html",styleUrls: ["style.css"]}）export class LoginComponent {private userName: string;private password: string;constructor（private authService: AuthService,private router: Router） { }login（） {this.authService.login（this.userName, this.password）.then（result => {if （result.State == 1） {this.router.navigate（["./home"]）;}else {alert（result.Msg）;}}）;}}

•style.css

/*styles of this view*/

•view.html

<table><tr><td>userName:</td><td><input [（ngModel）]="userName" placeholder="useName:try type user1" /></td></tr><tr><td>userName:</td><td><input [（ngModel）]="password" placeholder="password:try type user1psd" /></td></tr><tr><td></td><td><input type="button" （click）="login（）" value="Login" /></td></tr></table>

4.2.4.应用路由
路由是切换多页面用的。
在wwwroot/app下新建一个Typescript文件，命名为app-routing.module.ts，内容应该是这个样子。

import { NgModule } from "@angular/core";import { RouterModule, Routes } from "@angular/router";import { HomeComponent } from "./home/home.component";import { LoginComponent } from "./login/login.component"const routes: Routes = [{ path: "", redirectTo: "/home", pathMatch: "full" },{ path: "home", component: HomeComponent },{ path: "login", component: LoginComponent }];@NgModule（{imports: [RouterModule.forRoot（routes）],exports: [RouterModule]}）export class AppRoutingModule { }

接下来我们来应用这个路由，
打开app.module.ts，更新代码如下：

import { NgModule } from "@angular/core";import { BrowserModule } from "@angular/platform-browser";import { HttpModule } from "@angular/http";import { FormsModule } from "@angular/forms";import { AppRoutingModule } from "./app-routing.module";import { AuthService } from "./_services/auth.service";import { AppComponent } from "./app.component";import { HomeComponent } from "./home/home.component";import { LoginComponent } from "./login/login.component";@NgModule（{bootstrap: [AppComponent],imports: [BrowserModule,HttpModule,AppRoutingModule,FormsModule],declarations: [AppComponent,HomeComponent,LoginComponent],providers: [AuthService]}）export class AppModule { }

NgModule和BrowserModule你可以理解为基础模块，必加的。
HttpModule是做http请求用的。
FormsModule是做双向数据绑定用的，比如下面这样的，如果想把数据从view更新到component，就必须加这个。

<input [（ngModel）]="userName" placeholder="useName:try type user1" />

AppRoutingModule即为我们刚才添加的路由文件。
AuthService是我们最早添加的service文件。
AppComponent是我们最初添加的那个app.component.ts里的那个component.
HomeComponent,LoginComponent同上。
最后我们再app.component.ts中添加路由锚点，
把template的值为 "<router-outlet></router-outlet>"
完整的代码应该是这样：

import { Component } from "@angular/core";@Component（{moduleId: module.id,selector: "my-app",template: "<router-outlet></router-outlet>",}）export class AppComponent {}

router-outlet是路由锚点的关键词。
至此，所有代码完成，F5调试吧。

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持脚本之家。
